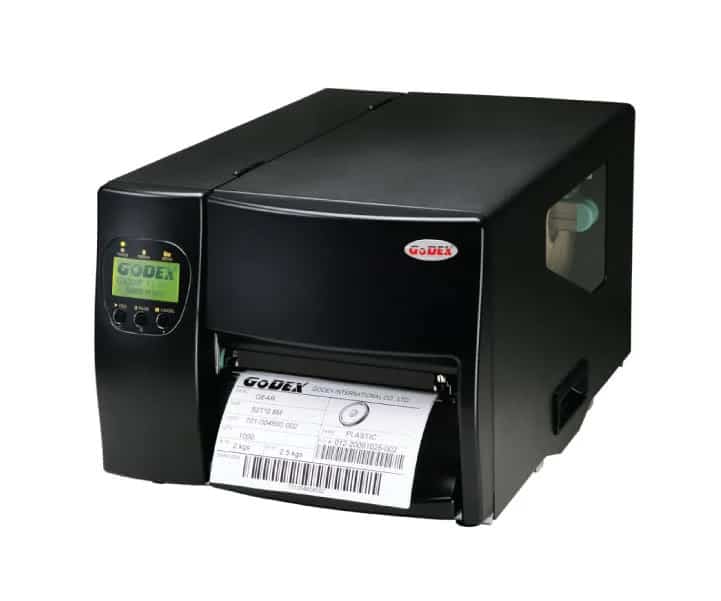

GoDEX EZ6200 Plus Thermal Printer (203dpi)

GoDEX
  • 6 inch print width
  • Easy print head replacement
  • High speed & high quality
  • Multifunction Panel with back-lit LCD display
  • Perfect for Logistics & Manufacturing

Compare

Description

Utilise the GoDEX EZ6200 Plus Heavy Duty 6″ Industrial Barcode Printer for your most demanding applications. Perfect for large size labels or special materials. Drum labels, corner labels, or when you need to go large, any labels requiring size and width combined with high volume are no problem for this 6″ industrial workhorse. Offering Serial, USB and Ethernet as standard interfaces look no further than this industrial model

Easy To Use

  • Simple and intuitive LCD screen for immediate printer status. Perfect for standalone use
  • Fast and effortless printhead assembly for efficient TPH switch
  • Automatic ribbon winding and inwound / outwound detection. Easy to install and simple to use
  • FREE GoLabel design software for easy label and barcode design
godex 1

GoDEX EZ6200 Plus Key Features

  • Print Modes: Thermal transfer and direct thermal
  • Print width: 6 inch wide label printer
  • 203dpi print resolution
  • Simple, tool free print head replacement
  • Automatically detect of print head resolution during change
  • Multifunction Panel with back-lit LCD display for easy user interface and operation
  • Modular concept for ease of maintenance
  • Ethernet interfaces, USB, Serial and Compact Flash socket as standard to maintain low investment cost
  • WLAN interface, Parallel, Rotary cutter, Peeler and Internal rewinder are optional
  • Bundled barcode QLabel Software for easy label design and database integration
  • Automatic self adjustment for inwound or outwound ribbons (CSO/CSI).

Print Specifications

Printing MethodDirect Thermal & Thermal Transfer
Printing Resolution203 dpi (8 dots/mm)
Max. Print Speed152.4 mm (6″)/second
Max. Print Width168 mm (6.61″)
Print LengthMin. 4mm (0.16”)** ; Max. 3000mm (118”)

Memory

Flash4 MB Flash (2 MB for user storage)
SDRAM16 MB

Sensor Type

Sensor TypeAdjustable reflective sensor and transmissive sensor, left aligned

Media

TypesContinuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming.
programming.
Width (Tear)50.8mm (2”) Min. – 178mm (7”) Max.
Width (Cutter)165mm (6.5”) Max
Width (Heavy Duty Cutter)172mm (6.8”) Max.
Width (Stripper/Rewind)178mm (7”) Max.
Thickness0.06mm (0.003”) Min. – 0.25mm (0.01”) Max.
Label Roll DiameterMax. 203.2mm (8”) with 76.2mm (3″) core / Max. 152.4 mm (6”) with 38.1 mm (1.5″) core
Core Diameter38.1 mm (1.5”) – 76.2 mm (3″)

Ribbon

TypesWax, wax/resin, resin – auto ink inside and ink outside
Length450 m (1471’)
Width60 mm Min. – 174 mm (2.36” – 2.36”) Max.
Ribbon roll diameter76 mm (2.99”)
Core diameter25.4 mm (1”)

Printer Language

Printer LanguageEZPL, GEPL (Godex Eltron® Printer Language), GZPL (Godex Zebra® Printer Language)

Software

Label Design Software
QLabel-IV (for EZPL only)
DriverWindows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DDLWin CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android

Resident Fonts

Bitmap Fonts6, 8, 10, 12, 14, 18, 24, 30, 16×26 and OCR A&B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF FontsCG TriumvirateTM (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable

Downloadable Fonts

Bitmap Fonts90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian Fonts16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)
90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF Fonts90°, 180°, 270° rotatable

Barcodes

1-D BarcodesCode 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars,
Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET,
ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit,
Japanese Postnet, I2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11,
Code 49, Cadablock
2-D BarcodesPDF417, Datamatrix code, MaxiCode, QR code and Micro QR code

Code Pages

Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869 and 737
Windows 1250, 1251, 1252, 1253, 1254, 1255
Unicode UTF8, UTF16BE , UTF16LE

Graphics

Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces

Serial port: RS-232 (DB-9)
USB port (default on)
CF Card socket
Ethernet 10/100Mbps print server (default off; disables USB when in use)

Control Panel

Backlit graphics LCD display: 128 x 64 dots or 4 lines x 16 characters
Three mono-color status-LEDs: Power on, Ribbon out, Media out
Control keys: FEED, PAUSE and CANCEL

Real Time Clock

Standard

Power

Auto Switching 100-240VAC, 50-60Hz

Environment

Operation Temperature41°F to 104°F (5°C to 40°C)
Storage Temperate-4°F to 122°F (-20°C to 50°C)

Humidity

Operation30-85%, non-condensing
Storage10-90%, non-condensing

Agency Approvals

CE(EMC), FCC Class A, CB, cUL and CCC

Dimensions

Length20.31” (516 mm)
Height11.22” (285 mm)
Width 13.58” (345 mm)

Weight

36.8 lbs (16.7 Kg), excluding consumables

Options

Cutter
Internal Rewinder with Label Dispenser
Parallel port (Centronics 36-pin) and PS2 port
Applicator Interface (1 input, 3 outputs, power 500mA @ 5V)
802.11 b/g wireless print server (Default off; disables USB when in use. Must remove Ethernet card to install)
External label roll holder for 10” (250 mm) OD label rolls
External label rewinder
